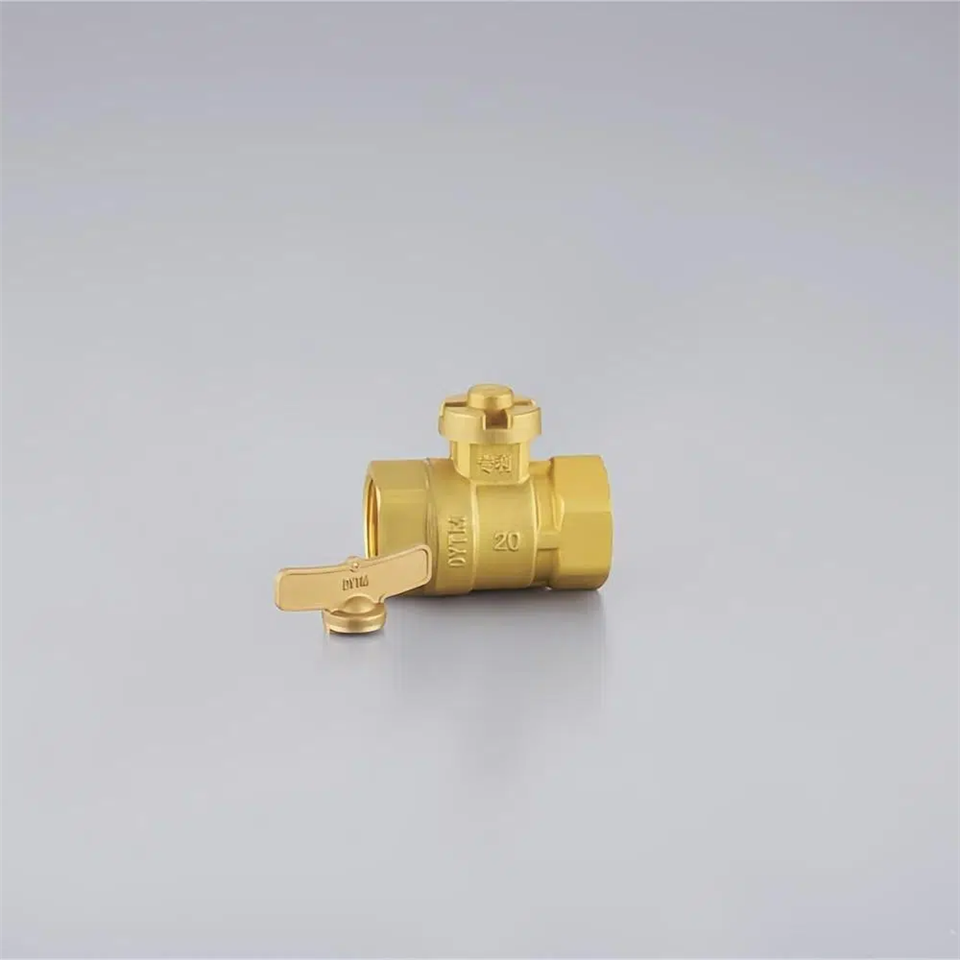

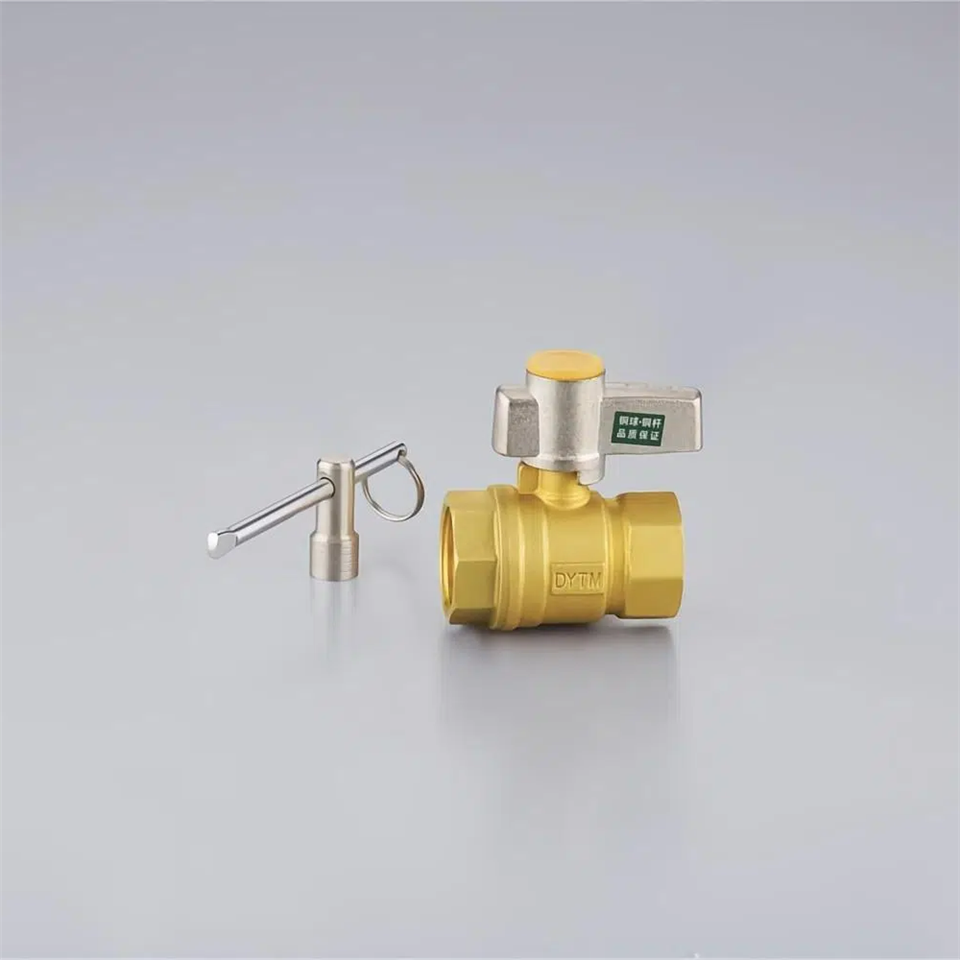

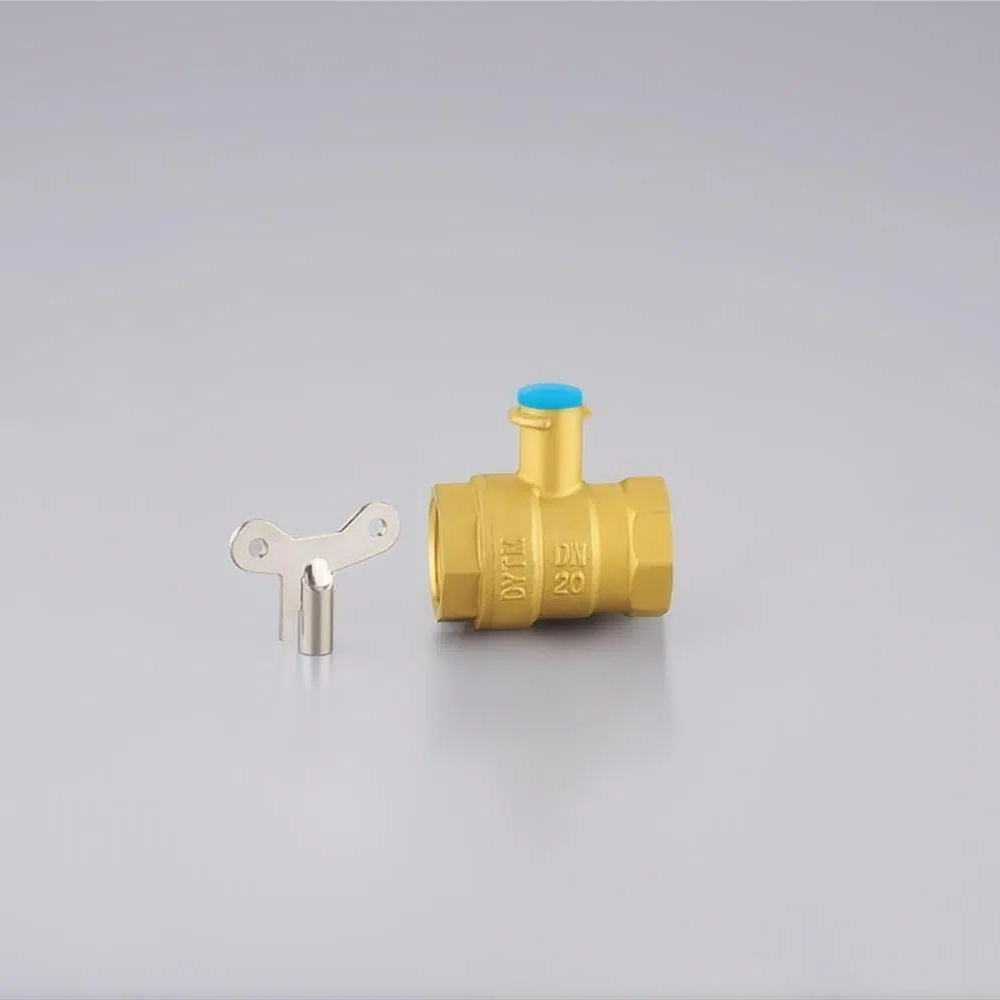

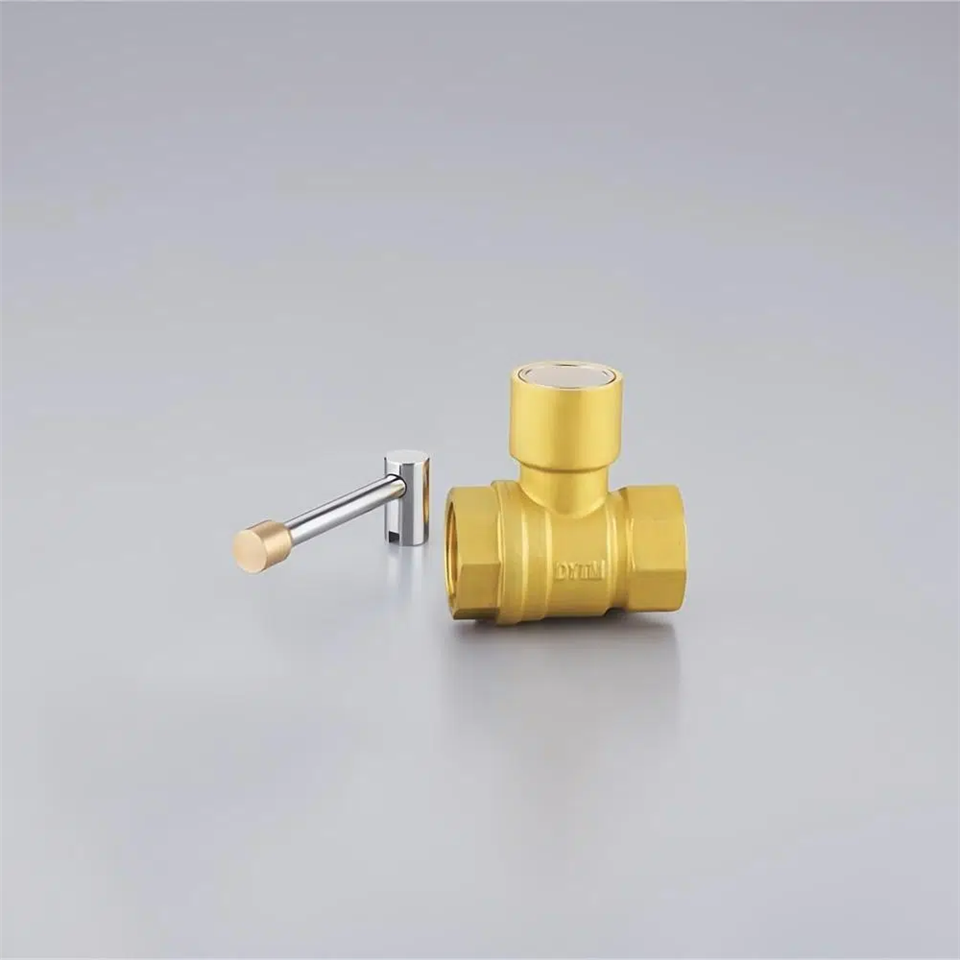

The working principle of Brass foot diameter locking ball valve:
The brass foot diameter locking ball valve achieves rapid opening and closing by rotating a brass ball with a through-hole, and uses a key locking structure to prevent unauthorized operation. The brass foot diameter locking ball valve is upgraded from a regular ball valve foundation, with a core structure of a brass ball with a through-hole. It can be opened (aligned with the pipeline through the through-hole) or closed (perpendicular to the pipeline through the through-hole) by rotating 90 ° around the valve stem. Its "foot diameter" characteristic refers to the diameter of the spherical through-hole being consistent with the inner diameter of the pipeline, which can minimize fluid resistance to the greatest extent possible.
Product characteristics of Brass foot diameter locking ball valve:
1.Good sealing performance: The brass material itself has good sealing performance, coupled with the special design of the ball valve, which significantly improves the sealing performance of the brass lock controlled ball valve. In various pipeline systems, it can effectively prevent medium leakage and ensure the safe and stable operation of pipelines.

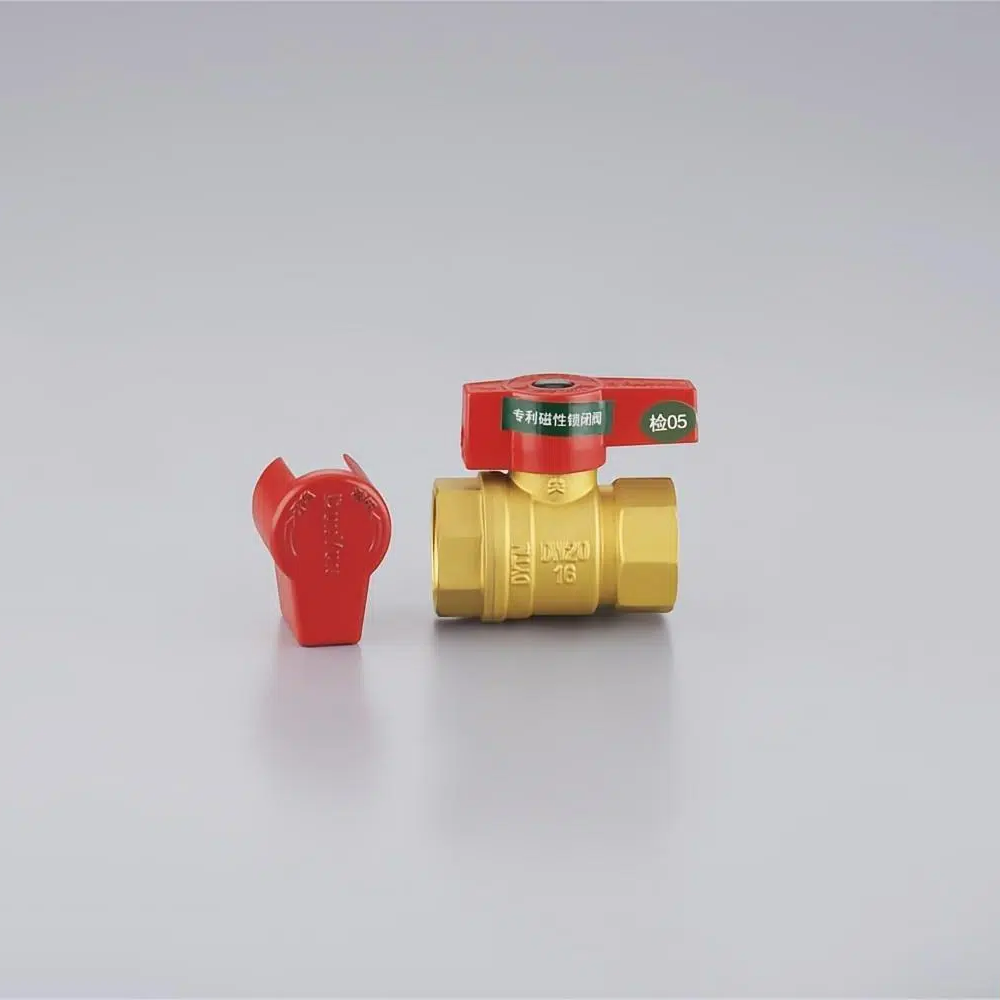

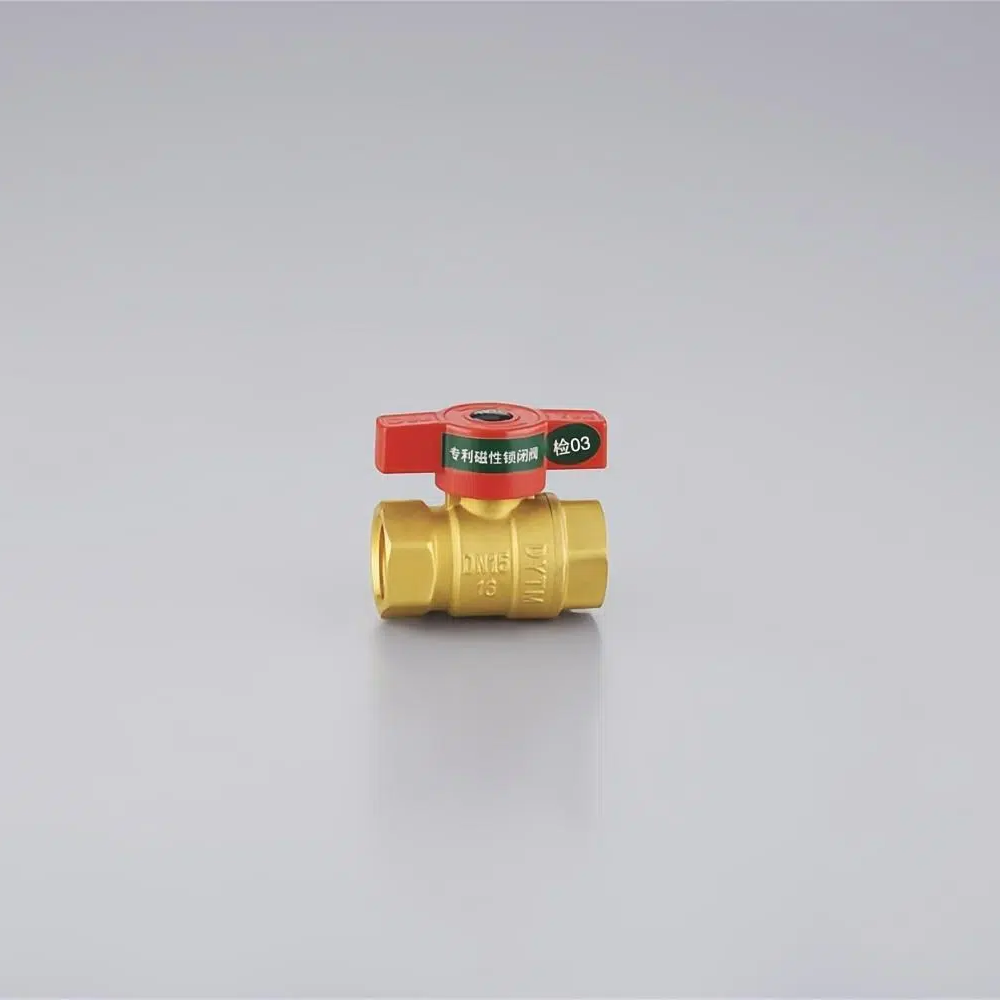

2.Locking function: The opening and closing design of the brass foot diameter locking ball valve adopts an axial tooth embedded lock core structure, and the lock core is made of magnetic material rubidium iron boron. There is no prescribed magnetic core coding manual, and a handle copied solely based on the shape of the valve stem cannot be opened, so it has a good locking function.
3.Simple structure and easy operation: Brass lock controlled ball valves have the characteristics of simple structure, good sealing performance, small driving torque, easy operation, and easy to achieve rapid opening and closing.
4.Wide applicability: Brass locking ball valves are suitable for various media, including water, oil, gas, and some chemical liquids. When choosing brass lock controlled ball valves, it is necessary to consider the properties of the medium, such as temperature, pressure, and chemical composition, to ensure that the valve can work properly and extend its service life.
5.Corrosion resistance: Brass has good corrosion resistance, which enables this type of solenoid valve to maintain stable working conditions in various harsh working environments.
6.High cost-effectiveness: Brass lock controlled ball valves have the advantages of high cost-effectiveness and long service life, which can save users maintenance and replacement costs.
7.Energy saving: Brass lock controlled ball valves should be designed and manufactured to minimize resistance to flowing media, thereby saving energy.
