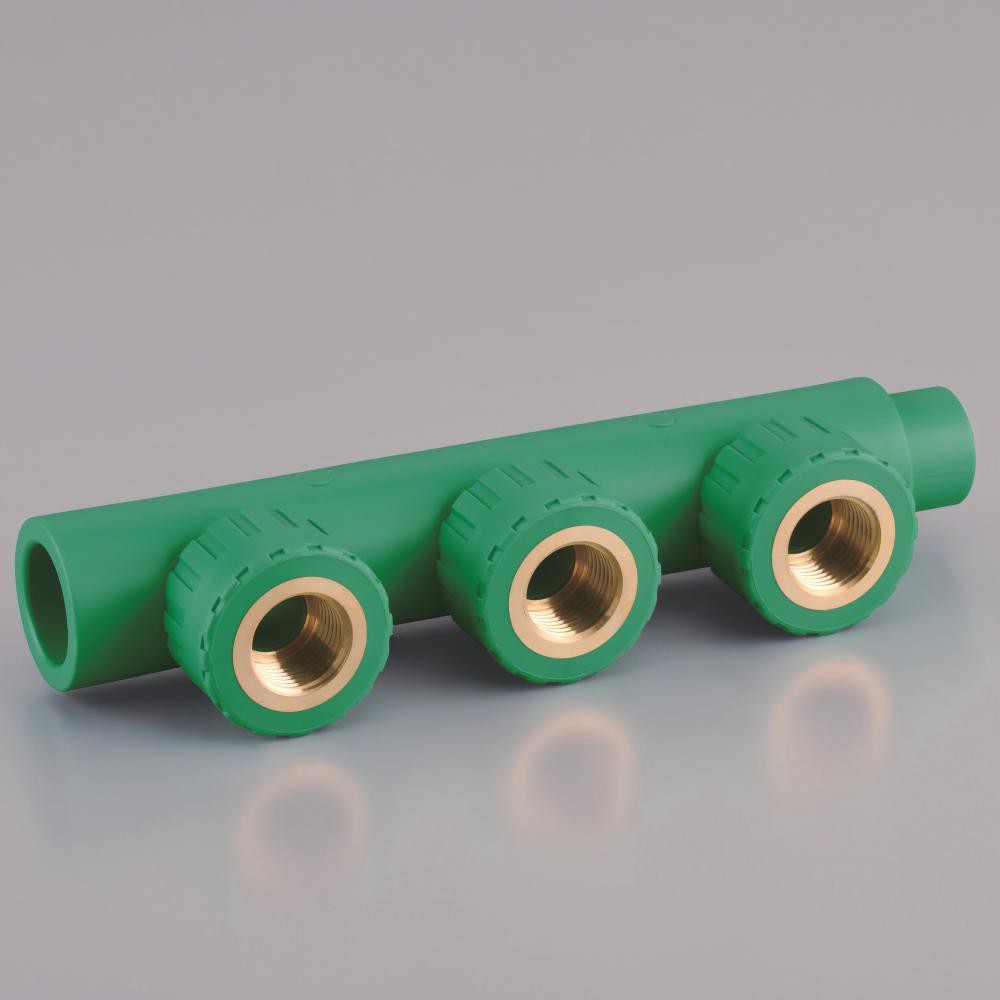

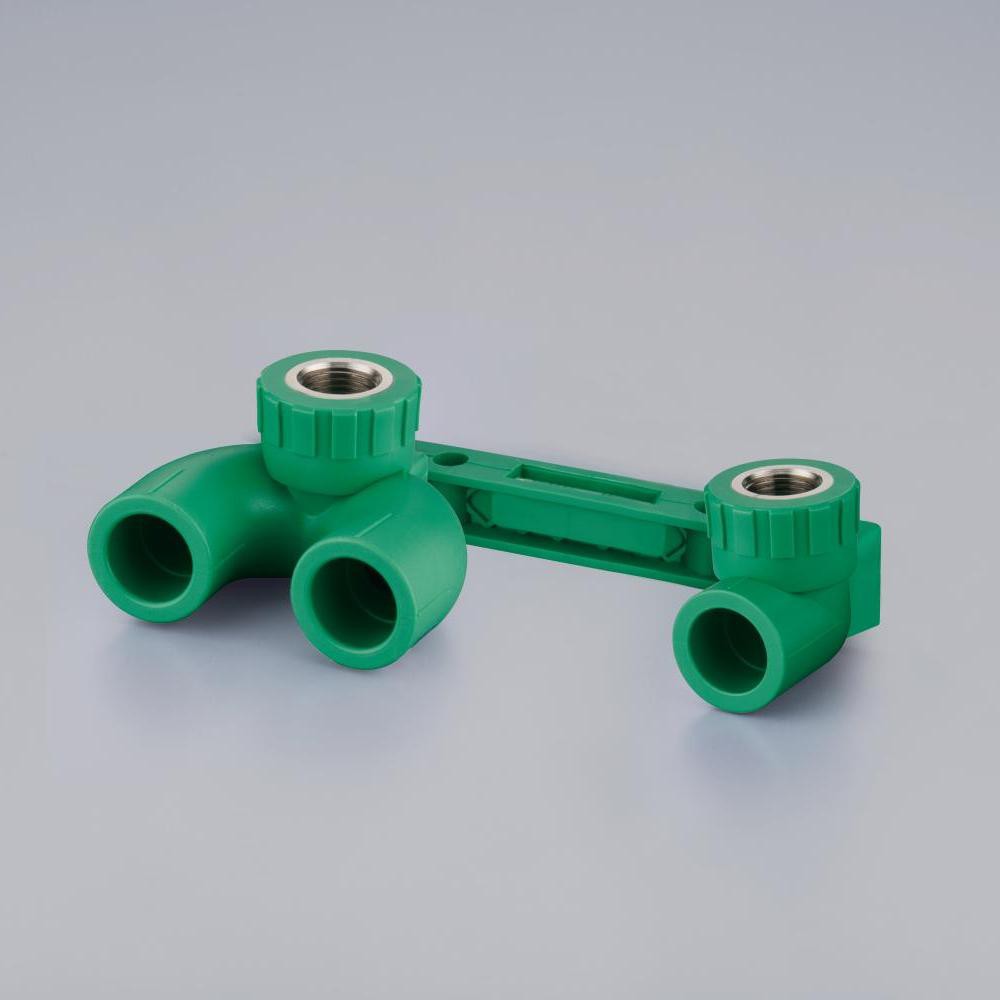

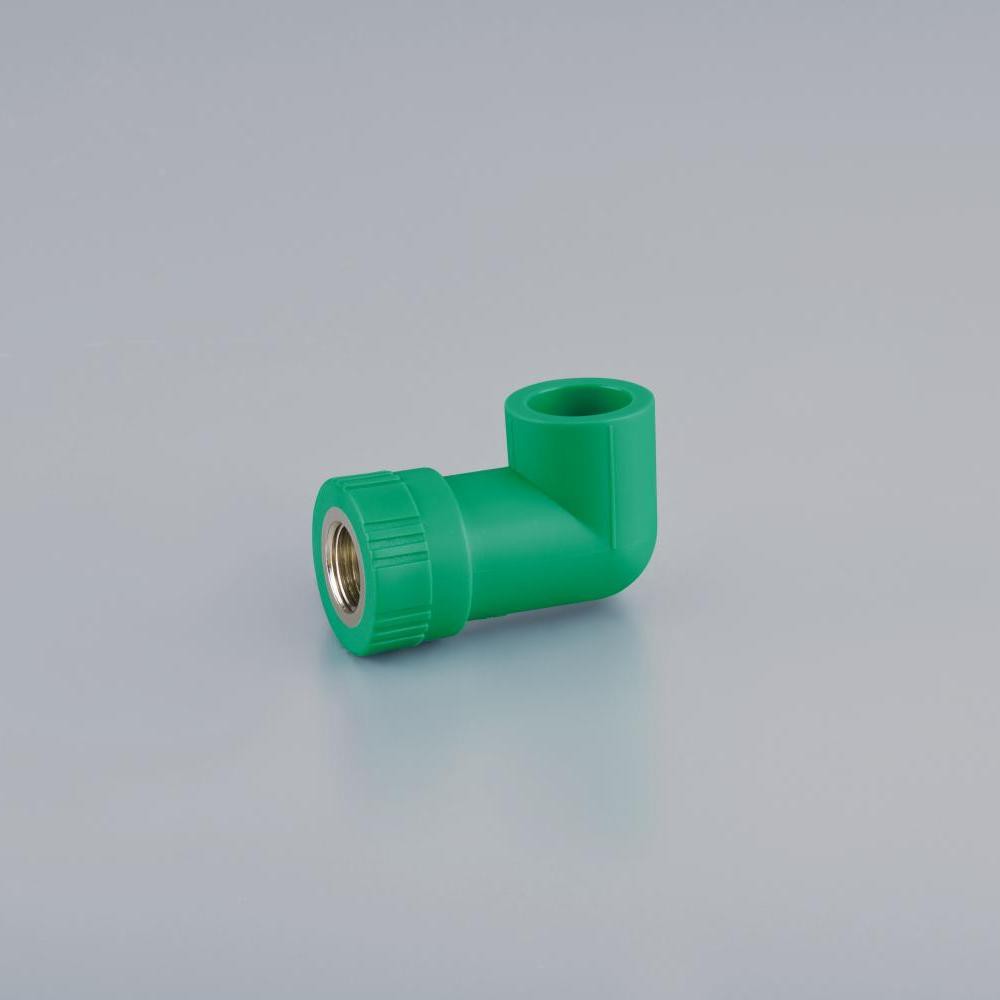

PP-R fittings are accessories used to connect PP-R pipes, including elbows, tees, tees, caps, plugs, etc. PP-R fittings are mainly used for changing the direction of pipelines, connecting pipelines, changing the direction of fluids, and sealing reserved pipes. The clamps, high clamps, and low clamps of PP-R fittings are used to fix pipelines, while PPR Yuanbaowan and winding bends are used for the bypass connection of intersecting pipelines.
-

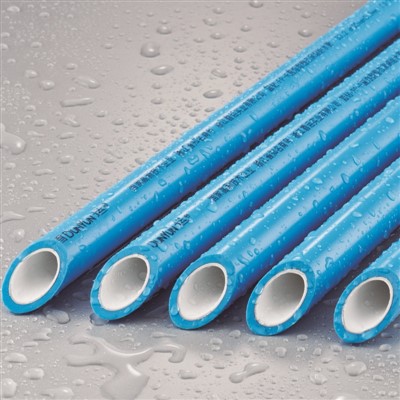

![PPR Direct Melting Steady State Pipe]()
PPR Direct Melting Steady State PipeWorking medium: waterview more
Docking process:heat fusion connection
Working temperature: -5°C≤ t ≤ 70°C
The pipeline complies with ISO45001, ISO14001, and ISO9001 standards -
![PPR Valve]()
-

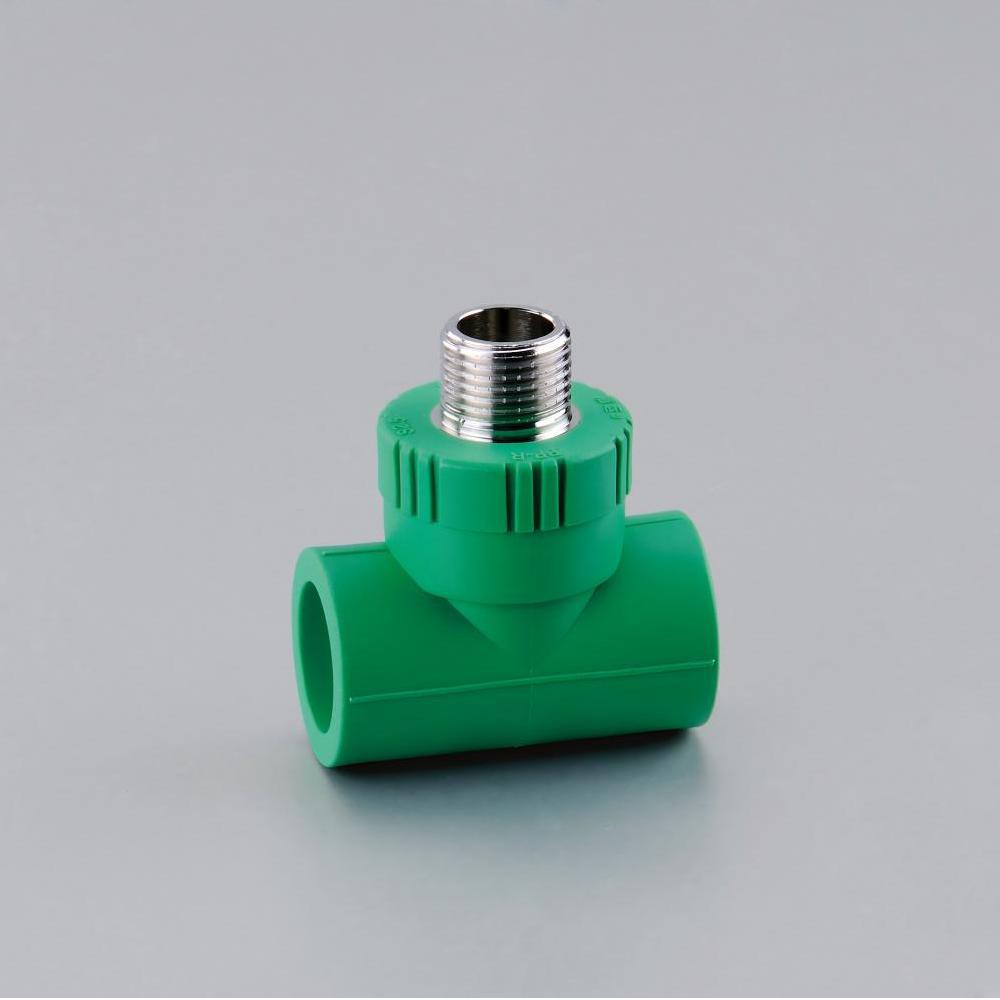

![PPR Threaded Fittings]()

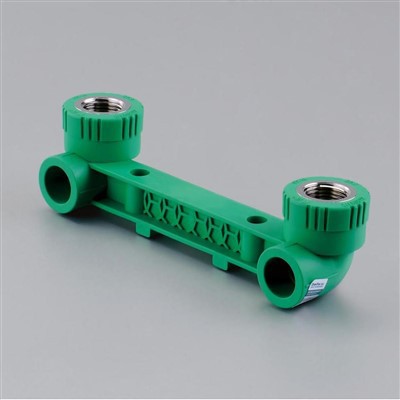

PPR Threaded FittingsWorking medium: waterview more
Docking process:BSP/NPT female thread connection
Working temperature: 0°C≤ t ≤ 80°C
The pipeline complies with ISO45001, ISO14001, and ISO9001 standards -

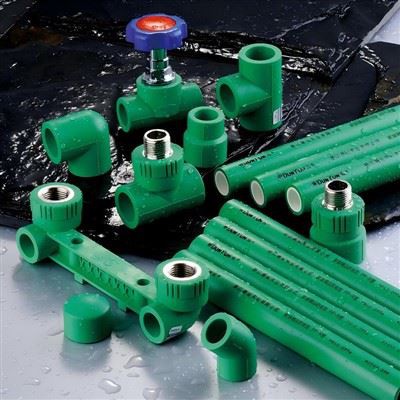

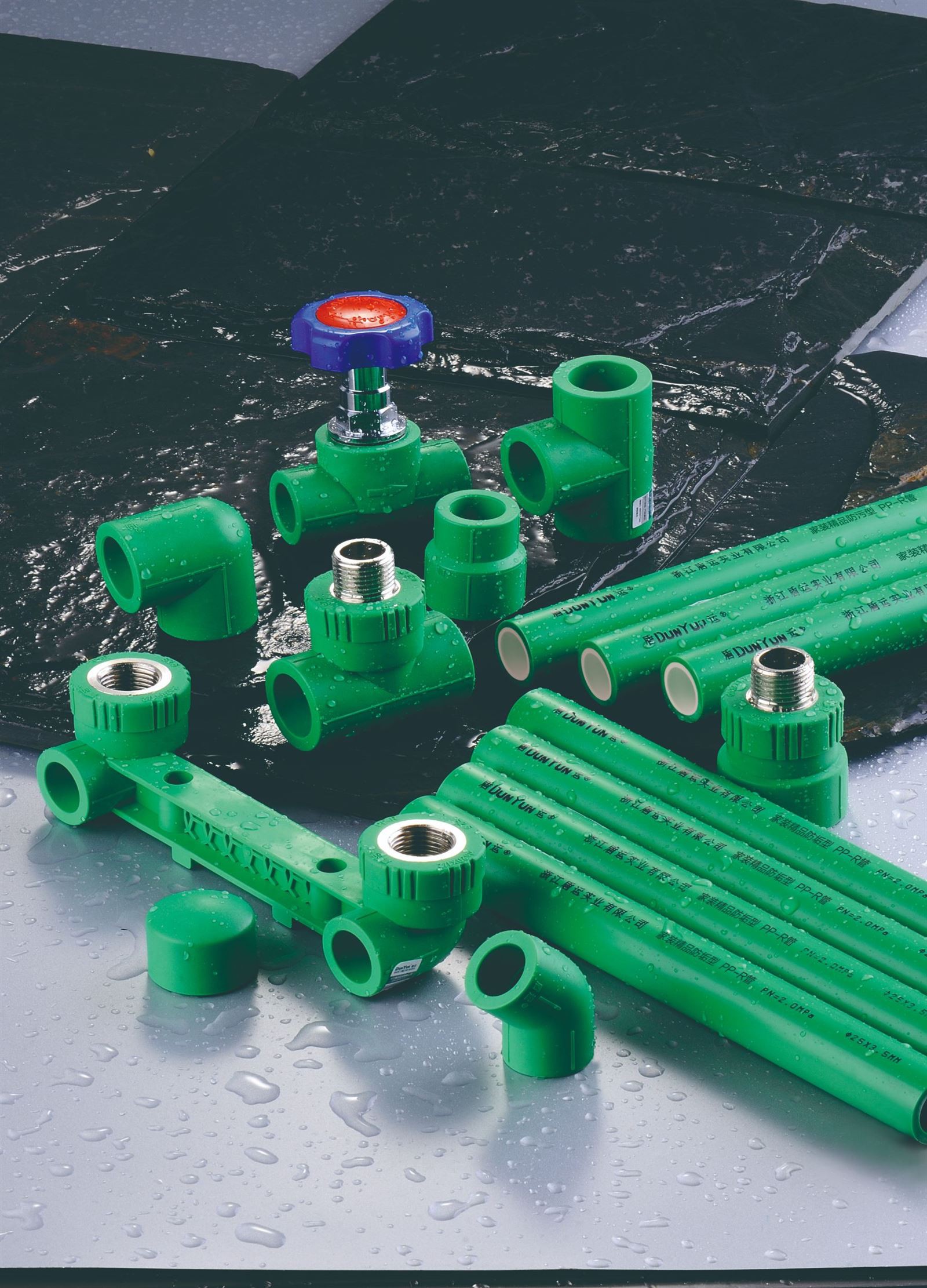

![Ppr Pipes And Fittings]()
Ppr Pipes And FittingsWorking medium: waterview more
Docking process:Hot melt connection
Working temperature: 0°C≤ t ≤ 95°C
The pipeline complies with ISO45001, ISO14001, and ISO9001 standards
Your professional pipeline supplier！
Zhejiang Dunyun Industrial Co., Ltd. is located at No. 1 Dunyun Road, Modern Environmental Protection Equipment Industrial Park, Zhuji City, the hometown of Xi Shi, in the Yangtze River Delta Economic Circle.We mainly produce pipeline such as"Dunyun "Blue Diamond PE-RT II Home Decor Anti scaling Floor Heating Pipe, Aluminum plastic Composite Pipe, PE-RT Floor Heating Pipe, PE-RT EVOH Floor Heating Pipe, Graphene Superconducting Floor Heating Pipe, Cross linked Hot Water Pipe, Gas Pipe, Direct Melting Steady State Pipe, Stainless Steel Bellows, PP-R Cold Water Pipe, PP-R Hot Water Pipe and other pipelines.
Rich Experience
As we are pipeline field Specialists with over 20+ years of experience in pipeline field, we have the tools, products, and experience to make sure that your pipeline field is durable and has a high life cycle.
Quality Control
All inspections are handled by qualified, experienced personnel aligned with the specifications of each project to fully satisfy our customers and surpass their expectations with a high degree of environmental consciousness to the total satisfaction of our customers.
Our Certifications
We have passed ISO9001 quality management system certification，as well as various product hygiene licenses.
Product Specification
We offers the following product specifications
|
Item number : |

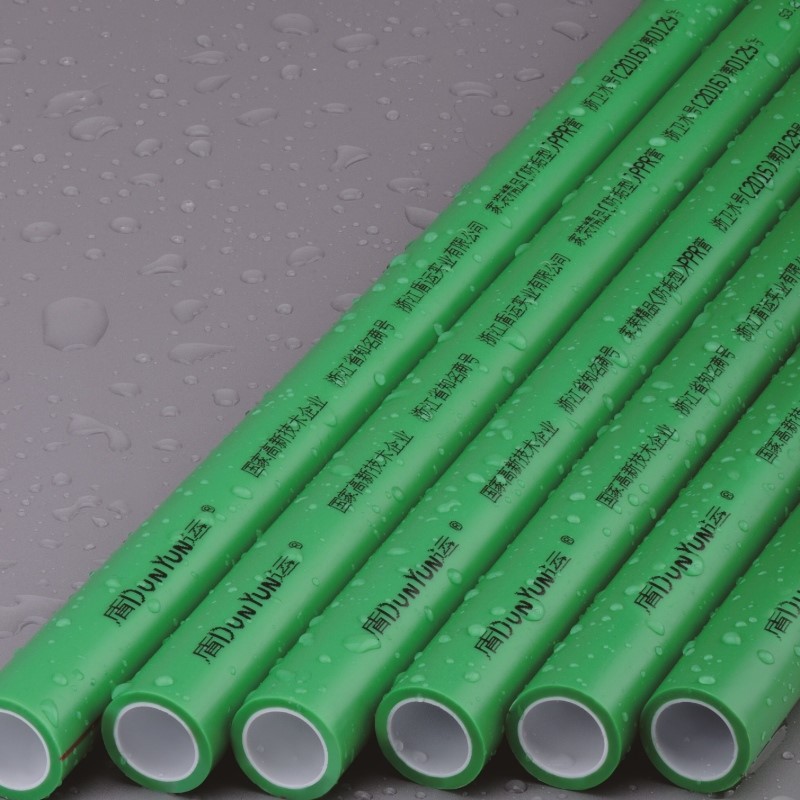

PP-R cold water pipe |
|
Working medium: |
Water |
|
Working temperature: |
0°C≤ t ≤80°C |
| Thread conform to ISO 145001 |
PPR pipe is a pipe made of randomly copolymerized polypropylene. The material of PPR pipe is random copolymer polypropylene, which is a thermoplastic with excellent heat resistance, pressure resistance, corrosion resistance, and flowability. PPR pipes are shaped through special molds. During the melting and extrusion process, the raw materials are heated to a certain temperature, and then cooled and cut to ensure their final physical properties and dimensional accuracy.
The use of PPR pipes
Building water supply and drainage
PPR pipes are suitable for the cold and hot water systems of buildings, including centralized heating systems; Heating systems inside buildings, including floors, wall panels, and radiant heating systems; Directly drinkable purified water supply system; Central (centralized) air conditioning system.
Industrial use
PPR pipes can be used in industrial piping systems for transporting or discharging chemical media.
Agricultural irrigation
In the field of agriculture, PPR pipes are used in irrigation systems to help farmers utilize water resources more effectively.
In the municipal field
PPR pipelines are used for infrastructure construction such as urban gas, electricity, and fiber optic cable sheaths.
Other fields
PPR pipelines are also used in industries such as healthcare, laboratories, food processing, as well as water supply systems for mobile facilities such as ships and vehicles.
Characteristics of PP-R pipe
1. Non toxic and hygienic: The raw material molecules of PPR pipes are only carbon and hydrogen elements, and there are no harmful or toxic elements present. They are hygienic and reliable, and can be used not only for cold and hot water pipelines, but also for pure drinking water systems.
2. Insulation and energy saving: The thermal conductivity of PPR pipe is 0.21w/mk, which is only 1/200 of that of steel pipe.
3. Good heat resistance: The Vicat softening point of PPR pipe is 131.5 ℃. The maximum working temperature can reach 95 ℃, which can meet the requirements for the use of hot water systems in building water supply and drainage regulations.
4. Long service life: PPR pipes can have a service life of more than 50 years under the conditions of working temperature of 70 ℃ and working pressure (P.N) of 1.0MPa (provided that the pipe material must be S3.2 and S2.5 series or above); At room temperature (20 ℃), the service life can reach over 100 years.
5. Easy installation and reliable connection: PPR pipes have good welding performance, and the pipes and fittings can be connected by hot melt and electric melt, making installation convenient and the joints reliable. The strength of the connection part is greater than that of the pipe itself.
6. Recyclable materials: PPR pipe waste is cleaned, crushed, and recycled for the production of pipes and fittings. The amount of recycled materials shall not exceed 10% of the total amount and shall not affect the quality of the product.
7. Chemical corrosion resistance: eliminates the worry of pipeline scaling and yellow rust on sinks and bathtubs.
8. Lightweight: Only one eighth the weight of metal pipes, easy to transport, and low construction intensity.
9. Beautiful appearance: The product has smooth inner and outer walls, low fluid resistance, soft color, and beautiful appearance.
10. Can be buried underground: The position of the pipe can be detected by a metal detector.
11. Easy and reliable installation: using hot melt connection, no need for threading, a joint connection can be completed in seconds. High quality copper inserts are used to connect with metal pipes and water separators, ensuring safety and reliability.
Certifications
Package & Delivery
Package: Standard export package or Custom
Delivery: By air express, by sea
FAQ
We're professional ppr pipe fitting manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to wholesale cheap ppr pipe fitting from our factory.
